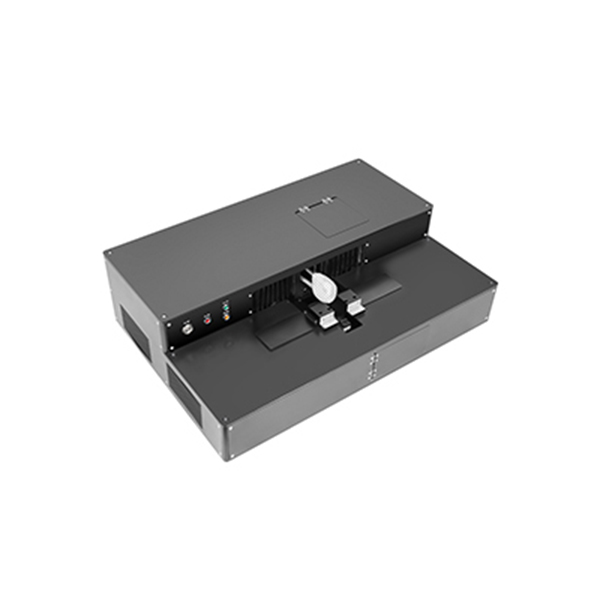

Uniform Acceleration Flame Fiber Tapering System (HTS-250)
Product Description
The HTS-250 Uniform Acceleration Flame Fiber Tapering System is a professional equipment dedicated to the core fabrication of pump combiners, mainly for secondary tapering of tube-type (6+1)×1 pump combiners. It is also suitable for R&D and mass production of fiber mode matchers, micro-nano fibers and other fiber products. Using oxy-hydrogen flame as the heat source, the system innovatively integrates uniform acceleration tapering algorithm and flexible flame motion modes, featuring excellent heating uniformity and taper profile controllability. It is a cost-effective solution for manufacturing mid-power optical devices in optical communication and laser technology fields.
Features
Uniform acceleration tapering technology
Flat-top flame
Flame motion: single scan (left to right) / reciprocating scan
Specification
Parameter | Unit | Specification | |
Tapering length | mm | 20~270 | |
Burner type | - | H₂-up O₂-down / mixed outer H₂ inner O₂ (optional) | |
Tapering displacement accuracy | um | ±0.1 | |
Tapering displacement straightness | um | 10 | |
Tapering displacement levelness | um | 15 | |
Tapering direction | - | Reverse | |
Flame travel length | mm | 0~150mm | |
Flame motion mode | - | Single scan / reciprocating scan | |
Operating temperature | ℃ | 23±2 | |
Hydrogen flow rate | SCCM | 300 | 500 |
Oxygen flow rate | SCCM | 100 | 300 |
Operating humidity | %RH | 50~60 | |
Power supply | V/HZ | AC110~220/50~60 | |
Operating current | A | 0~40A | |
Dimensions (L×W×H) | mm | 550*800*250 | |
Standard Accessories List
Accessory | Model | Unit | Qty |
Uniform Acceleration Flame Tapering System | HTS-250 | set | 1 |
Special fiber fixture | Provide according to the size request | pair | 1 |
Oxy-hydrogen generator | / | unit | 1 |
Certificate of Conformity | / | copy | 1 |
Warranty Card | / | copy | 1 |
User Manual | / | copy | 1 |
Wooden packing case | / | piece | 1 |
