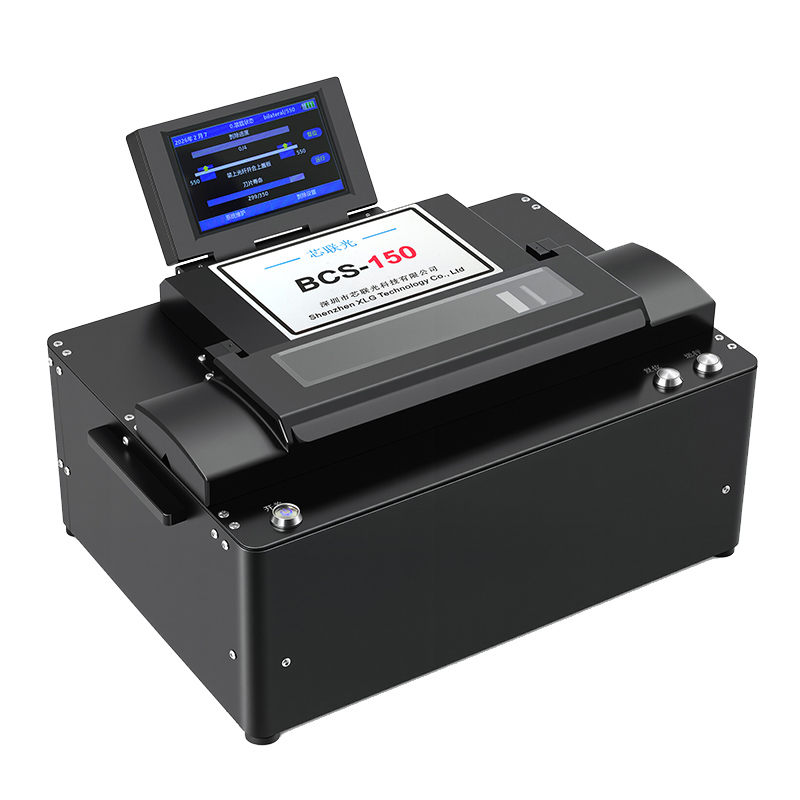

Blade-type Fiber Coating Stripper（BCS Series）
Product Description
The BCS series fiber coating stripper is suitable for window stripping of fiber coatings with a
diameter ranging from 125μm to 1500μm. The BCS-150 model features a unique backlash-free
blade rotation and a large-opening fiber loading slot design, which respectively support
independent double-end stripping angle adjustment and prevent fiber scratches during
loading and unloading. All models in the BCS series support fixture replacement and
customization of 8 groups of parameters.
Features
• Built-in 25200mAh lithium battery
• Double-end stripping function
• Large-opening fiber loading
• Multiple stripping gears
• Parameter customization
Specifications
Parameters | Unit | BCS-35 | BCS-150 |
Double-end Stripping | / | No | Yes |
Double-end Stripping Length | mm | No | 130 (max) |
Single-end Stripping Length | mm | 1~35 | 1~150 |
Fiber Coating Diameter | um | 125~1500 | |
Single Fiber Stripping Times | dB | 4 、8 、12 、16 、24 、32 、48 、60 | |
Blade Life | - | 350*4 | |
Operating Humidity | %RH | 50~60 | |
Power Supply | - | AC 110~220V 50/60Hz; DC 12.6V 5A | |
Battery Capacity | mAh | 25200 | |
Dimensions (L*W*H) | mm | 310x215x108 | 381x276x178 |
Weight | kg | 6.8 | 11.5 |
Standard Accessory List
Accessory | Model | Unit | Quantity |
Large-diameter Fiber Cleaver | BCS-35/BCS-150 | set | 1 |
Power Adapter | / | set | 1 |
Fiber fixture | FH-F-550 (Provide according to thesize request) | pair | 1 |
Certificate of Conformity | / | copy | 1 |
Warranty Card | / | copy | 1 |
User Manual | / | copy | 1 |
Portable Carrying Case | / | piece | 1 |
