Graphite Fiber Tapering System (GTS-20)
Product Description
The GTS-20 series graphite fiber tapering system is a
professional processing equipment for R&D and
production of ultra-high power signal combiners and
pump combiners. It is suitable for tapering processing
of optical components with various fiber specifications
(especially large-core fibers) in optical communication
and laser technology. Featuring high processing
precision, stability and cost-effectiveness, it can
effectively improve production efficiency and product
consistency.
Features
⚫ Cost-effective “Ω” shaped graphite filament as heating element
⚫ Dual-CCD vision system

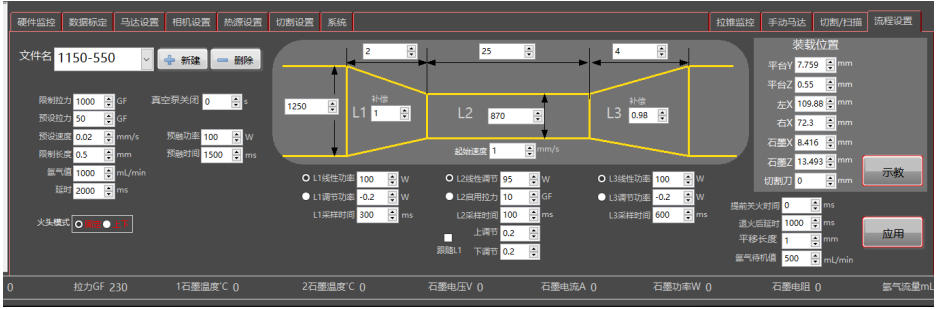

⚫ Automatic cone modeling, saving, editing and recalling
⚫ Co-directional and reverse tapering modes
Specification
Parameter | Unit | Specification |
Tapering length | mm | 0~150 |
Tapering displacement accuracy | um | ±0.1 |
Compatible processing size | - | T4 graphite filament: up to φ1500 μm tube T6 graphite filament: up to φ2500μm tube |
Graphite burner X-axis travel | mm | 0~100 |
Graphite burner Z-axis travel | mm | 0~10 |
Graphite heating power | W | 30~400 |
Tapering direction | - | Left or reverse |
Operating humidity | %RH | 50~60 |
Atmospheric pressure | Kpa | 70~106 |
Power supply | V/Hz | AC110~220/50~60 |
Dimensions (L×W×H) | mm | 736*1027*1418 |
Standard Accessories List
Accessory | Model | Unit | Qty |
Graphite fiber tapering system (with computer) | GTS-20 | set | 1 |
Fiber holder | Customized per request | pair | 1 |
Graphite burner | (T4/T6 optional) | piece | 1 |
Certificate of conformity | - | copy | 1 |
Warranty card | - | copy | 1 |
User manual | - | copy | 1 |
Wooden packing case | - | piece | 1 |
