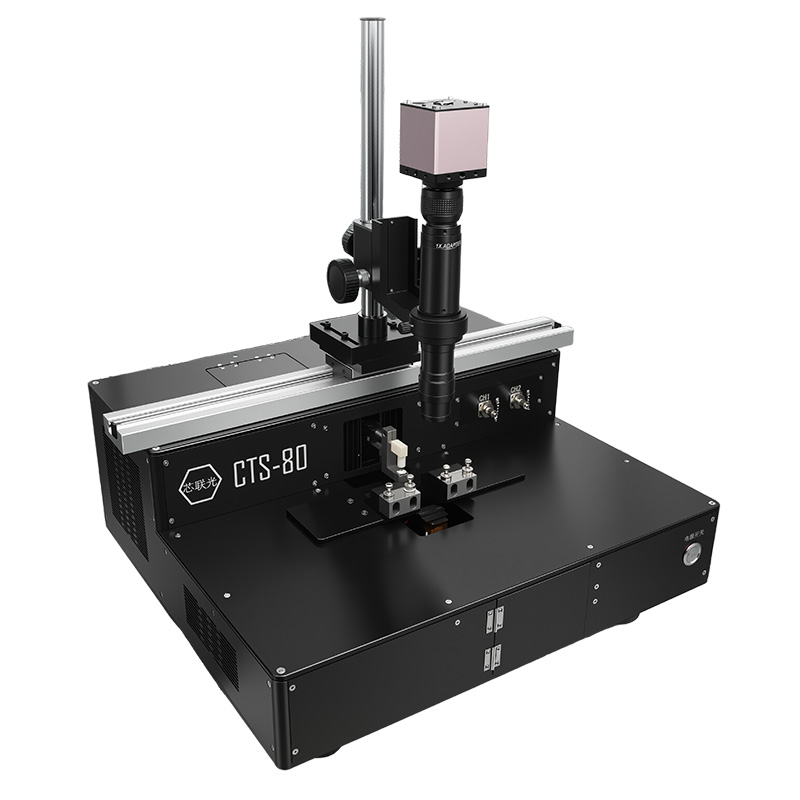

Flame Fiber Tapering System（CTS-80 Series）

Product Description

The CTS-80 Series flame fiber tapering system is a cost-effective professional equipment for R&D and mass production of low-to-medium power fiber devices. Using oxy-hydrogen flame as the core heat source, it is suitable for fabricating (2+1)×1 pump fiber combiners, fiber mode matchers, micro-nano fibers, tapered couplers, tapered WDM devices and other fiber components. It supports fiber core expansion process to optimize mode field matching and coupling efficiency. The machine integrates tapering, packaging, and optical power monitoring in one unit, supports customized configurations, and is the preferred equipment for small-batch R&D and production in optical communication and fiber sensing fields.

Features

⚫ Unique burner design: H₂-up O₂-down / symmetric outer H₂ inner O₂

⚫ All-in-one process: tapering, spot-pull/spot-burn repair, cold tapering, packaging & curing

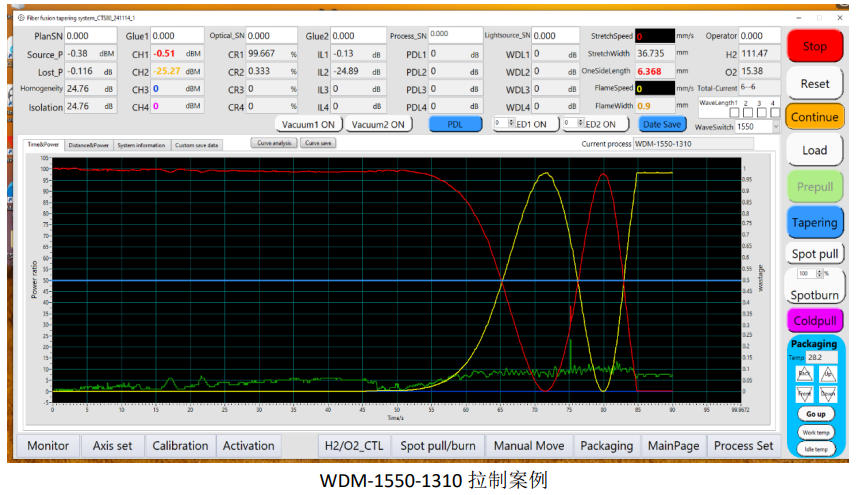

⚫ Real-time monitoring of all parameters

⚫ Support creation, saving and recall of tapering process templates

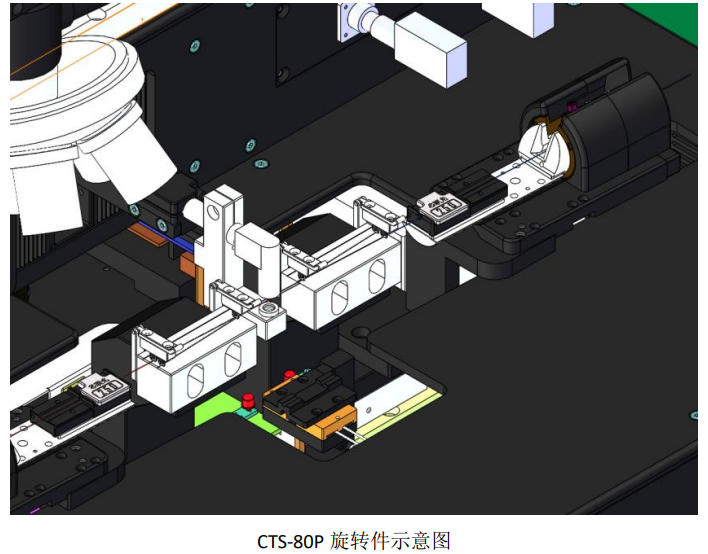

⚫ Motorized polarization-maintaining (PM) rotation (optional)

Specifications

Order Informotion

Standard Accessory List
